SPServices Stories #16: Beginning SharePoint Development with KoSp – Knockout for SharePoint, REST API and SPServices

Introduction

There were a few tweets from Ashok Raja today that caught my eye.

KoSpAshok has released a new Codeplex project called KoSp which helps with the bindings between SharePoint data and Knockout. Knockout has become a very popular library to use client side to manage data and Ashok’s tool should come in handy for anyone who decides to use it.

KoSp, Knockout for SharePoint 2013 and SharePoint 2010 is a knockout binder extensions for SharePoint REST API and SPServices. KoSp provides custom knockout binding handlers that enables easy binding of json data from SharePoint lists retrieved via REST API with oData queries and  SP Services with CAML queries with client side controls.

Now, I’ll admit that I haven’t had time to try this out. After all, Ashok just released it today. I did take a quick look through the JavaScript file, though, and it looks good.

Ashok’s posts give examples of how to use KoSp with both REST calls and SOAP calls using SPServices. Which you decide to use is really up to you and which version of SharePoint you’re using. If you’re on SharePoint 2007, SPServices is definitely the ticket, on SharePoint 2010 and 2013, you have a choice of REST or SOAP. What you choose should be determined by your requirements and your available skill sets.

I wanted to reproduce the “Beginning” post from Ashok’s blog here to help give him some publicity for his efforts on KoSp. I know how it can be frustrating to do great work, put it on Codeplex, and then just hear the crickets. Given that Ashok has just released the project, I’m sure he’d love to have some downloads, but even better, some feedback on how it works for others and what they would like to see next. If you’re interested in using Knockout with SharePoint, give it a look.

As with all of the posts written by others in the SPServices Stories series, I’ve done some minor editing and added a few notes, but otherwise, the content is all Ashok’s. Enjoy.

Beginning SharePoint development with KoSp – Knockout for SharePoint , REST API and SPServices

Follow the below steps to build your first KoSp-based SharePoint application. The first method explains the REST API mode and the next method explains the SPServices mode.

Method 1: Data via Rest API

Step 1

Download ko.sp.min.Ex.js, knockout.js, jquery.js from the respective project sites.

Step 2

Upload the downloaded JavaScript libraries to the Style Library of a SharePoint site.

imageStep 3

Create a new SharePoint List named “Employees” with columns Title (Default), Skills (Choice Field With Multi-select option with values “Asp.Net”, “C#”, “SharePoint”, “VB.Net”)

Step 4

Add some records to this list so that we can display those data in our application

Step 5

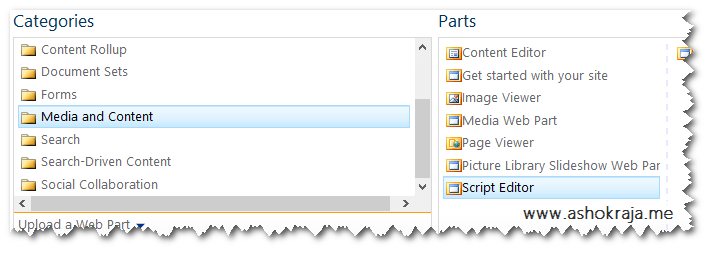

Create a new SharePoint page or edit an existing page. Add a script editor web part (located under Media and Content Category) to the page. [Or use a Content Editor Web Part pointing to a Content Link]

imageStep 6

Click the “EDIT SNIPPET” link of script editor web part and copy paste the below code into it (Change the site URL in the script paths pointing to your style library or where ever you have placed the code)

<script src="http://srv2:902/ko/Style Library/kosp/jquery-1.8.3.min.js"></script>
<script src="http://srv2:902/ko/Style Library/kosp/knockout-3.0.0beta.js"></script>
<script src="http://srv2:902/ko/Style Library/kosp/ko.sp-1.0.min.Ex.js"></script>

<div>
  <table width="600px">
    <thead>
      <tr>
        <th>Employee Name</th>
        <th>Skill Set</th>
        <th>Created Date</th>
        <th>Created By</th>
      </tr>
    </thead>
    <tbody data-bind="template: { name: 'Emp', foreach: Employees }" />
  </table>
</div>

<script type="text/html" id="Emp">
  <tr>
    <td data-bind="text:Title"></td>
    <td data-bind="spChoice:Skills,multi:true"></td>
    <td data-bind="spDate:Modified,dataFormat:'DD-MMM-YYYY, hh:mm:ss a'"></td>
    <td data-bind="spUser:ModifiedBy"></td>
  </tr>
</script>

<script type="text/javascript">

function EmployeeModal() {
  var self = this;
  self.Employees = ko.observableArray([]);
  $.getJSON(_spPageContextInfo.webAbsoluteUrl + "/_vti_bin/listdata.svc/Employees?$expand=Skills,ModifiedBy",
    function (data) {
      if (data.d.results) {
        self.Employees(ko.toJS(data.d.results));
    }
  });
}

$(document).ready(function () {
  ko.applyBindings(new EmployeeModal());
});
</script>

Check in and save the page.

That’s it. Now the data will be rendered in a tabular format as shown below.

imageWell, let’s see what’s there in the above code. If you notice the code, except for spDate, spUser and spChoice in the data-bind attribute, all the remaining code is related to typical Knockout view and View Modal. The data binding handlers starting with “sp” are related to KoSp and it takes care of parsing and formatting the data.

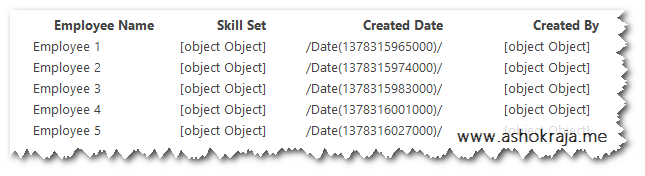

If the default text binder of Knockout is used instead of KoSp, the below would be the expected output.

Template code with default text binder
<script type="text/html" id="Emp">
  <tr>
    <td data-bind="text:Title"></td>
    <td data-bind="text:Skills"></td>
    <td data-bind="text:Modified"></td>
    <td data-bind="text:ModifiedBy"></td>
  </tr>
</script>

Note: Subsequent post explains in detail about each and every Knockout binding handlers available in KoSp

Method 2 : Data via SPServices

Step 1

Download SPServices from Codeplex along with all the JavaScript libraries mentioned in Step 1 of Method 1

Step 2

Follow steps from 2 to 6 in Method 1 and replace the code with the below code.

<script src="http://srv2:902/ko/Style Library/kosp/jquery-1.8.3.min.js"></script>
<script src="http://srv2:902/ko/Style Library/kosp/jquery.SPServices-2013.01.min.js"></script>
<script src="http://srv2:902/ko/Style Library/kosp/knockout-3.0.0beta.js"></script>
<script src="http://srv2:902/ko/Style Library/kosp/ko.sp-1.0.min.Ex.js"></script>

<div>
  <table width="600px">
    <thead>
      <tr>
        <th>Employee Name</th>
        <th>Skill Set</th>
        <th>Created Date</th>
        <th>Created By</th>
      </tr>
    </thead>
    <tbody data-bind="template: { name: 'Emp', foreach: Employees }" />
  </table>
</div>

<script type="text/html" id="Emp">
  <tr>
   <td data-bind="text:Title"></td>
   <td data-bind="spChoice:Skills,src:'sps'"></td>
   <td data-bind="spDate:Modified,src:'sps',dataFormat:'DD-MMM-YYYY, hh:mm:ss a'"></td>
   <td data-bind="spUser:ModifiedBy,src:'sps'"></td>
  </tr>
</script>

<script type="text/javascript">

function Employee(data) {

  this.Title = ko.observable(data.Title);
  this.Skills = ko.observable(data.Skills);
  this.Modified = ko.observable(data.Modified);
  this.ModifiedBy = ko.observable(data.ModifiedBy);

}

function EmployeeModal() {

  var self = this;
  self.Employees = ko.observableArray([]);

  $().SPServices({
    operation: "GetListItems",
    async: false,
    listName: "Employees",
    CAMLViewFields: "<ViewFields Properties='True' />",
    CAMLQuery: "<Query></Query>",
    completefunc: function (xData, Status) {
      var spsData = $(xData.responseXML).SPFilterNode("z:row").SPXmlToJson({ includeAllAttrs: true, removeOws: true });
      if (spsData) {
        $.each(spsData, function (k, l) {
          self.Employees.push(new Employee({
            Title: l.Title,
            Skills: l.Skills,
            Modified: l.Modified,
            ModifiedBy: l.Editor
          }))
        });
      }
    }
  });
}

$(document).ready(function () {
  ko.applyBindings(new EmployeeModal());
});

</script>

[As I pointed out in a comment on Ashok’s post, note that as of SPServices 2013.01, you can use jQuery promises (.Deferred() objects) This eliminates the need to do synchronous calls and can really improve performance, especially in IE. See my blog post about Comparing SPServices 2013.01 Calls with Async vs. Promises Methods.]

Save and publish the page. You can expect the same output as shown in Step 6 of Method 1

If the default text binder of Knockout is used instead of KoSp, the below would be the output you can expect.

imageHope this might have provided you a clear understanding of how to begin with KoSp for SharePoint.

Knockout for SharePoint at Codeplex

5 Comments

  1. Marc, I thought I had moved on from SPServices once I started using REST in a SharePoint Online environment, but I wanted to pass along a note that I have found some REST limitations which make SPServices still very much a part of my toolbox. One of the biggest issues ive had is that with SharePoint Online, expanding a lookup in a RESTful call only works with local lookups. If you try to expand a lookup value when the lookup is a site column referencing a different site, it breaks. This issue is compounded since you cant get to either the ID or the Value of that lookup field without expanding – otherwise you could just grab the ID and then make another RESTful call. SPServices to the rescue – no issue getting to the ID and Value of a lookup. Just wanted to say thanks again.

    -Joe
